Li-Ion Charger With Protection

Power & Batteries › Battery Chargers & Management

Qwiic No

Charge lithium-ion batteries easily with this Li-Ion Charger featuring CC/CV technology and built-in protection against short-circuits.

Lithium batteries are charged differently than regular batteries and devices. You'll need a li-ion charger like this one to charge them. Integrated with the CC/CV charging technology, it is the simplest way to charge a lithium-ion battery.

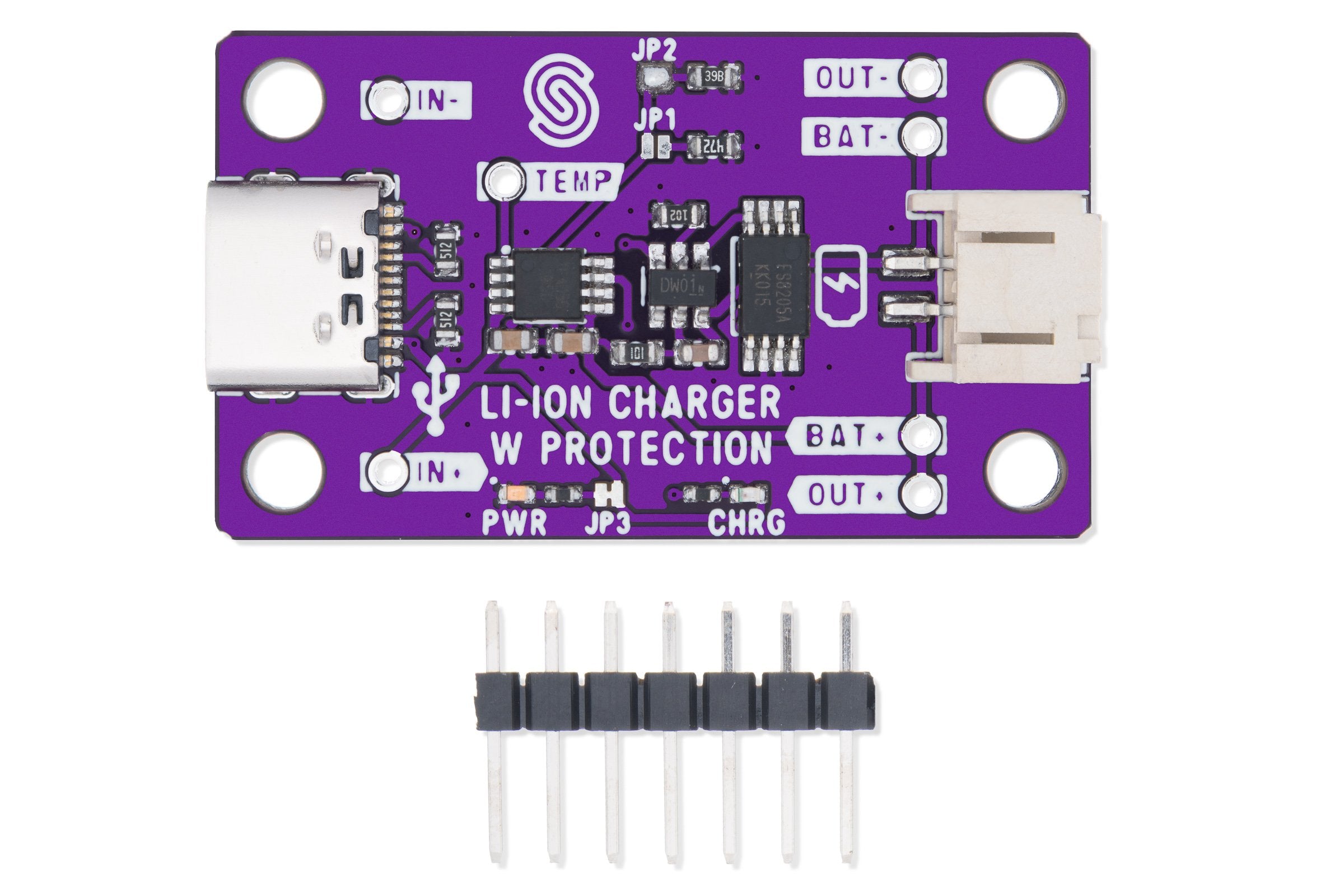

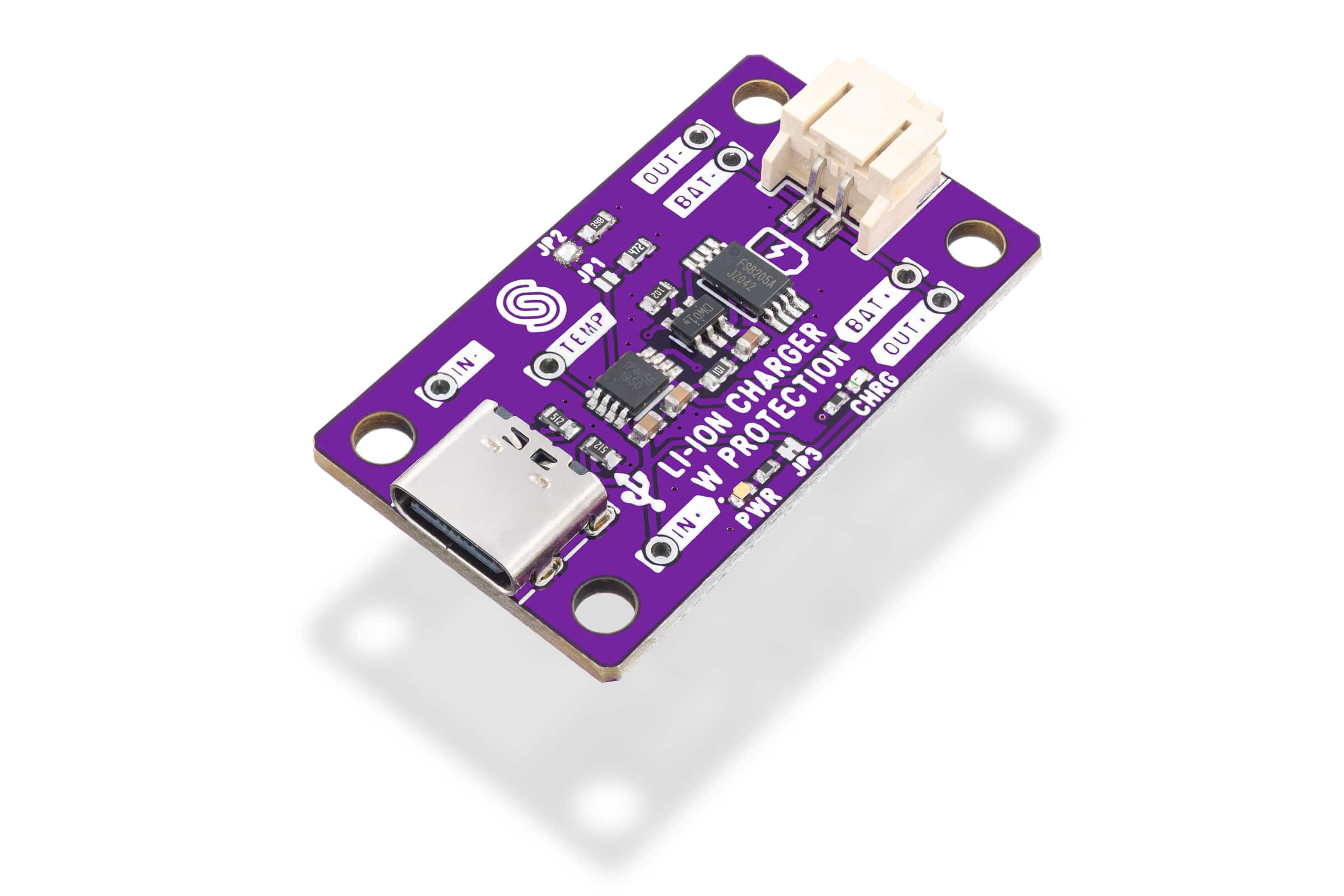

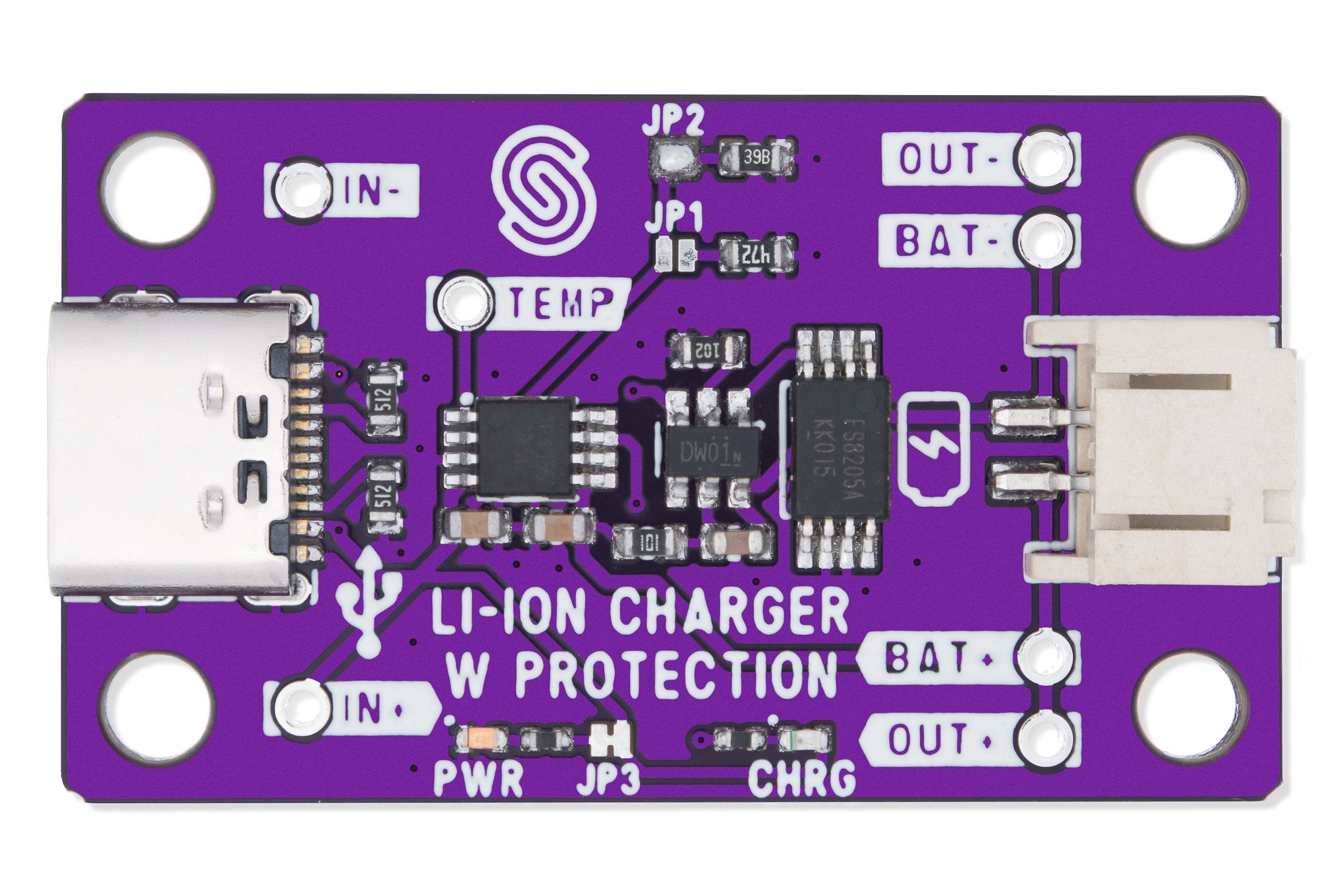

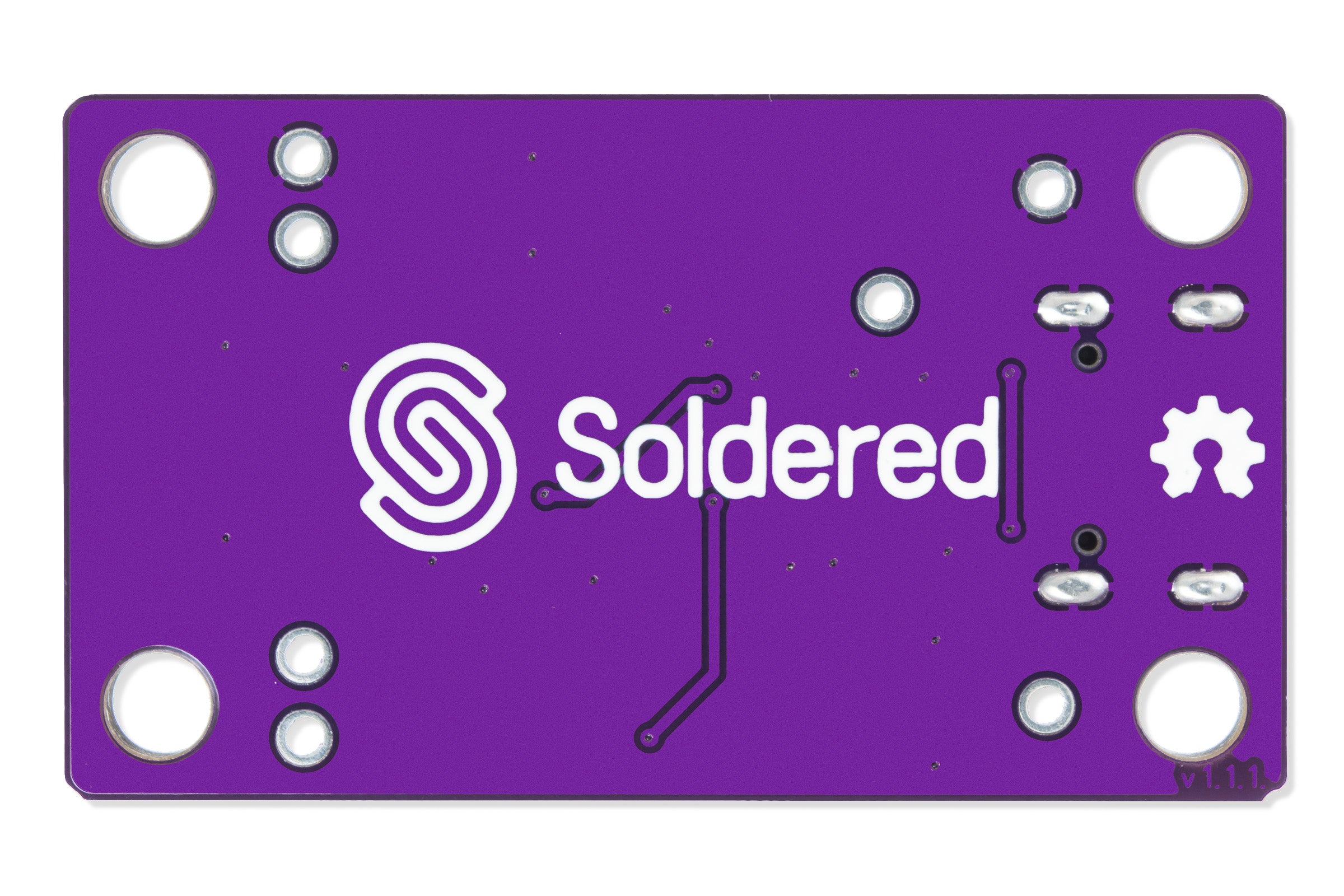

The board has a USB Type-C connector for power, a JST-type connector for batteries, the charging circuit, a protector, and two status LEDs. Comes with 7 pins that need to be soldered.

Product usage tips:

For older Li-ion charger with protection boards, connect the TEMP pin to GND to initiate charging. The red LED glowing means the battery is charging. Easy embedding into a project with the four mounting holes on the board.

Note: This charger has protection against short-circuit, too high, or too low voltage. It has no protection against reverse polarity.

Max output current: 500 mA
Logic voltage level: 5V
Operating voltage: 4.5V - 5.5V
Connectors: USB Type-C (female), JST battery
Mounting holes: 4
Dimensions: 38 x 22 mm / 1.5 x 0.9 inch

Interface

Qwiic Compatible	No
Breadboard Compatible	Yes

Power

Supply Voltage Min V	5
Supply Voltage Max V	5
Max Output Current A	0.5
Protection Features	Overcharge, Overdischarge, Short Circuit

Other

Ic Part Number	TP4056M
