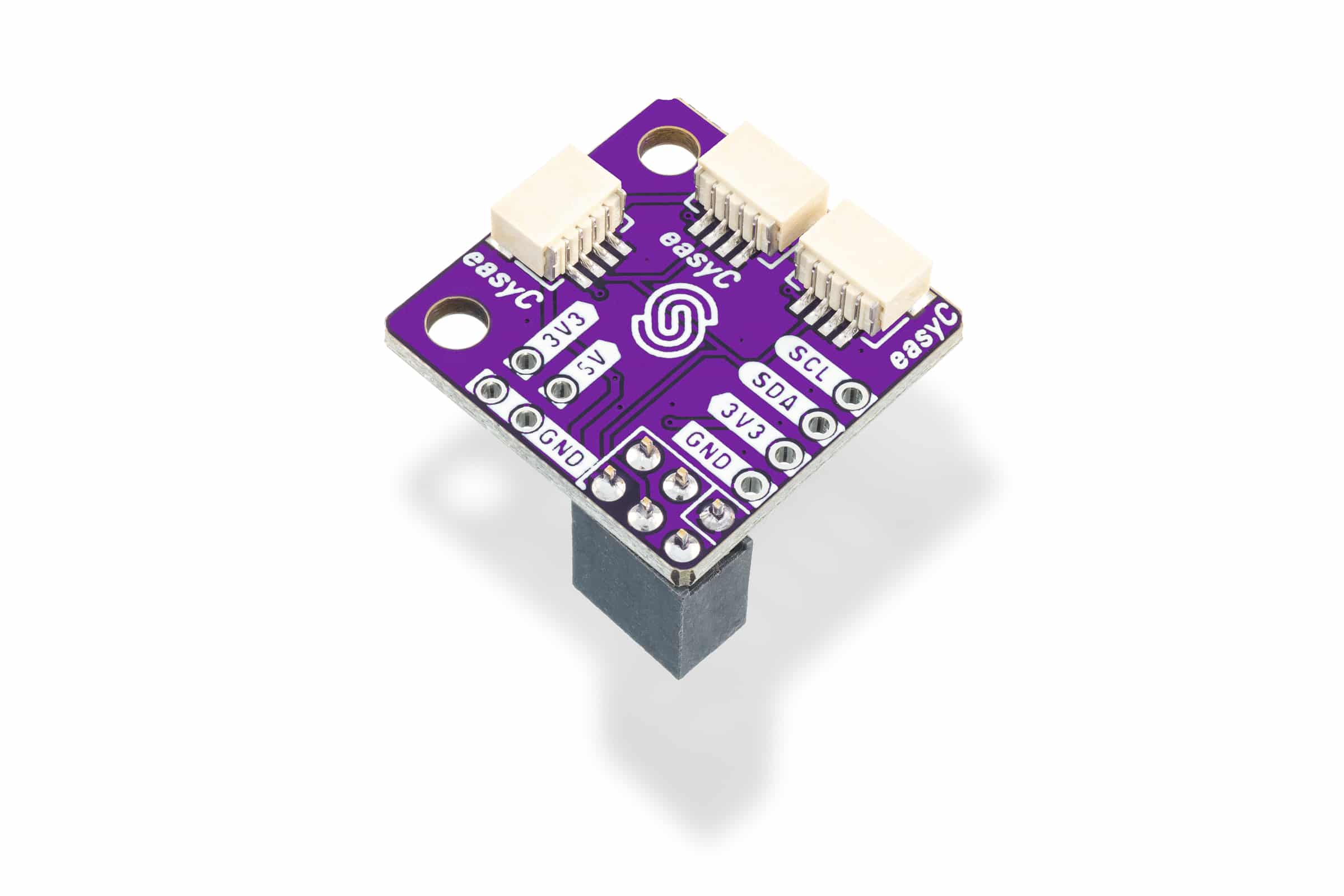

Raspberry Pi Qwiic Adapter
Qwiic Ecosystem
›
Qwiic Tools
Microcontrollers & Dev Boards
›
Raspberry Pi
Interface
['i2c']
Qwiic
Yes
Easily connect Qwiic devices to your Raspberry Pi with this adapter featuring 3 Qwiic connectors and a compatible pinout.
This adapter makes it easy to connect Qwiic devices and sensors to the Raspberry Pi. It has 3 pieces of Qwiic connectors and a female header for Raspberry Pi, next to the header there are pins for connecting 5V and 3.3V and ground pins. It simply connects to the Raspberry Pi because its pinout matches the pinout of the Raspberry Pi.
- Voltage: 3.3V and 5V
- Dimensions: 22 x 22 mm / 0.9 x 0.9 inch
Interface
| Interface | I2C |
|---|---|
| Qwiic Compatible | Yes |
| Breadboard Compatible | No |
Power
| Logic Level | 3V3 Only |
|---|
What's in the Box
1×
Raspberry Pi Qwiic Adapter 333019
Pinout
Last updated:
Identity & Discovery
8 resources

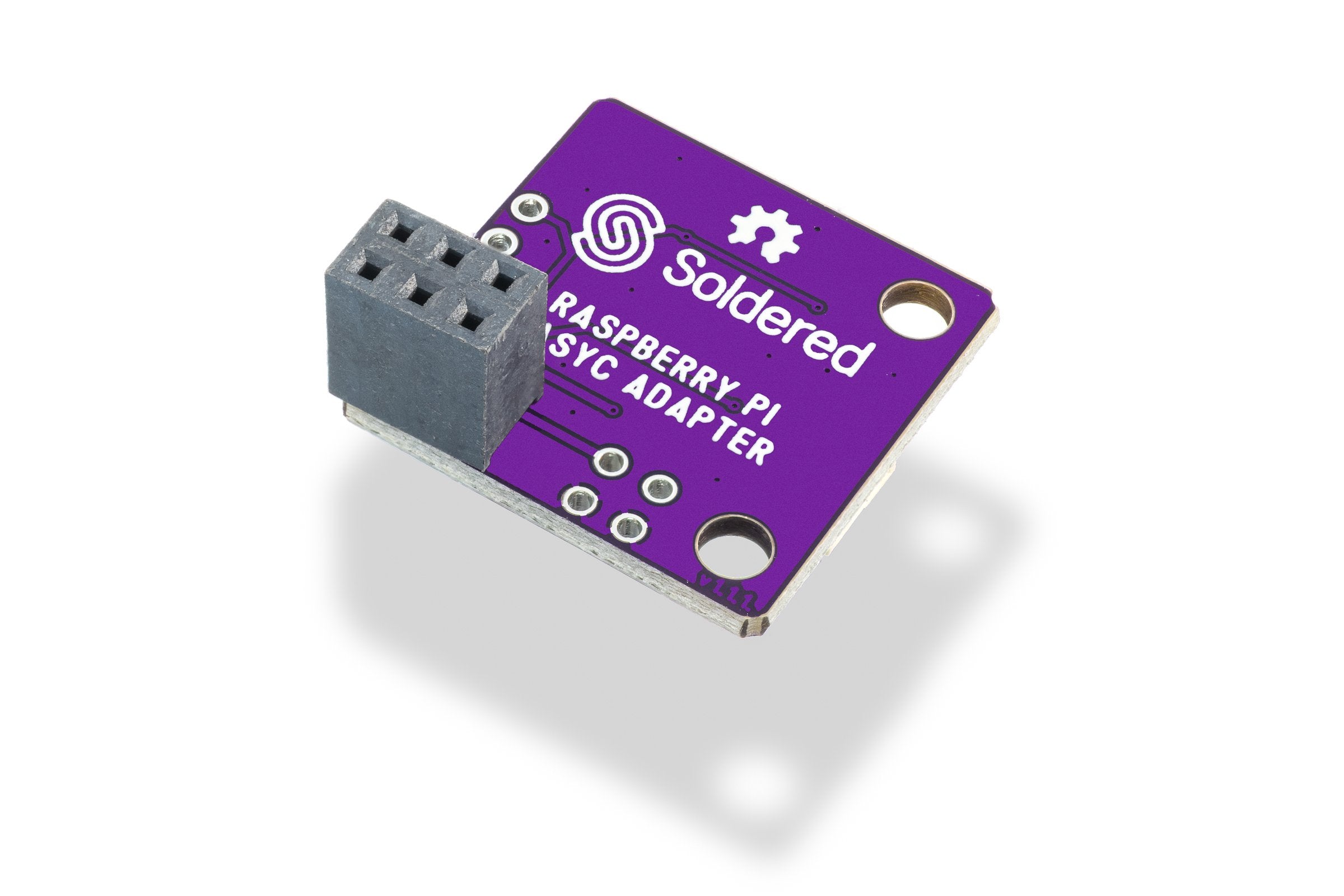

Isometry — PNG (white background)
PNG
Isometry — PNG (transparent)
PNG

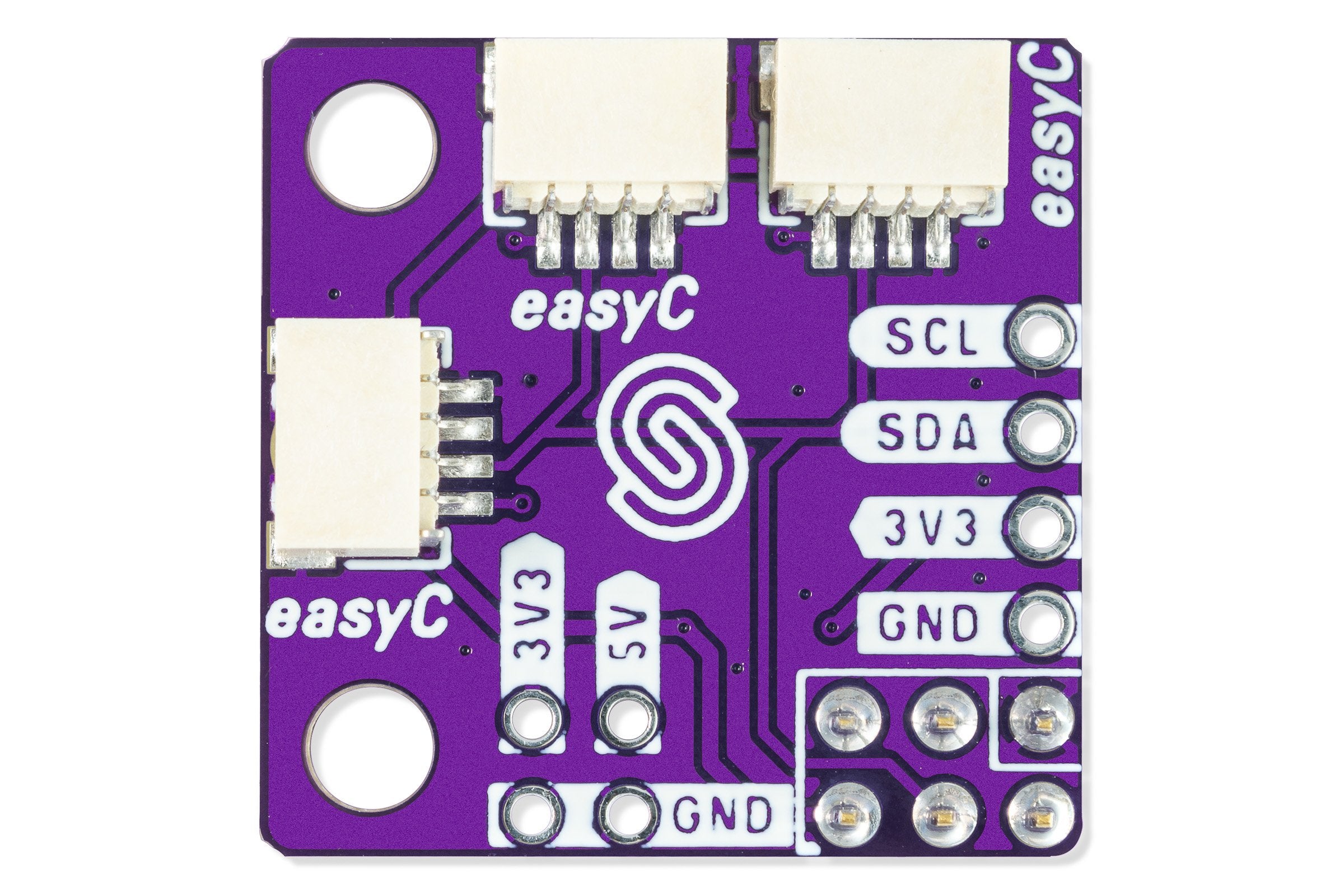

Top down — PNG (white background)
PNG
Top down — PNG (transparent)
PNG

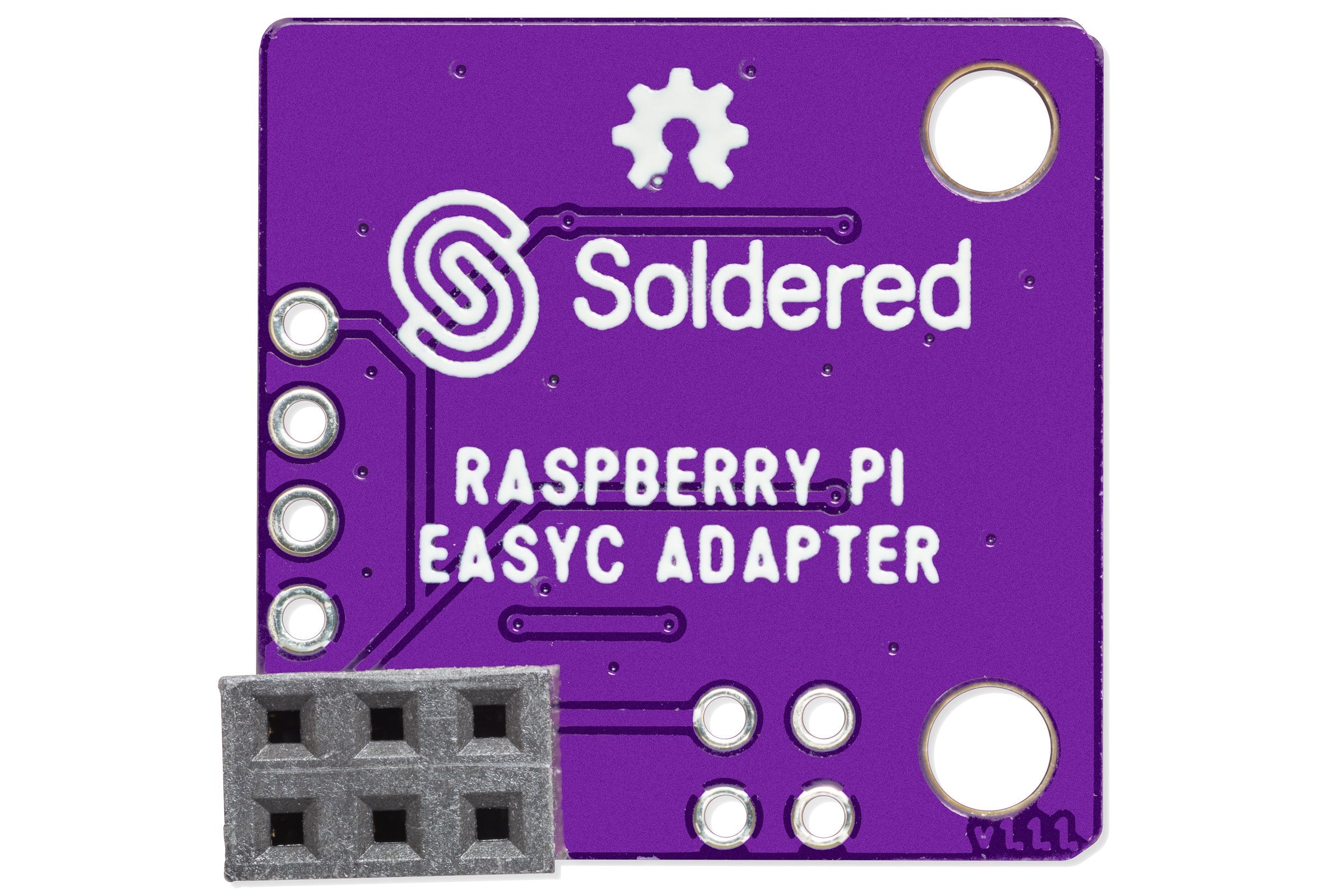

Bottom up — PNG (white background)
PNG
Bottom up — PNG (transparent)
PNG

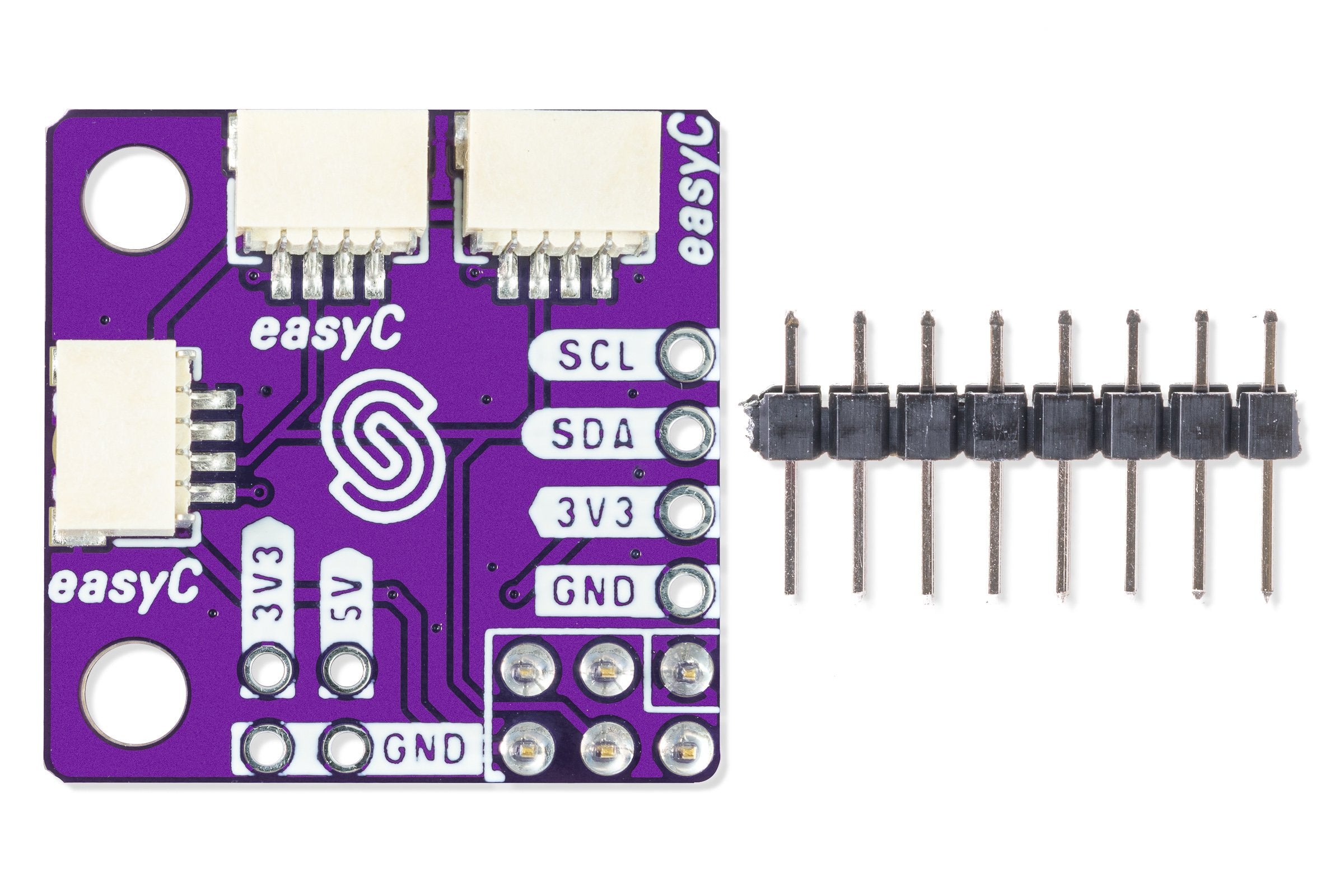

Top down with included header pins — PNG (white background)
