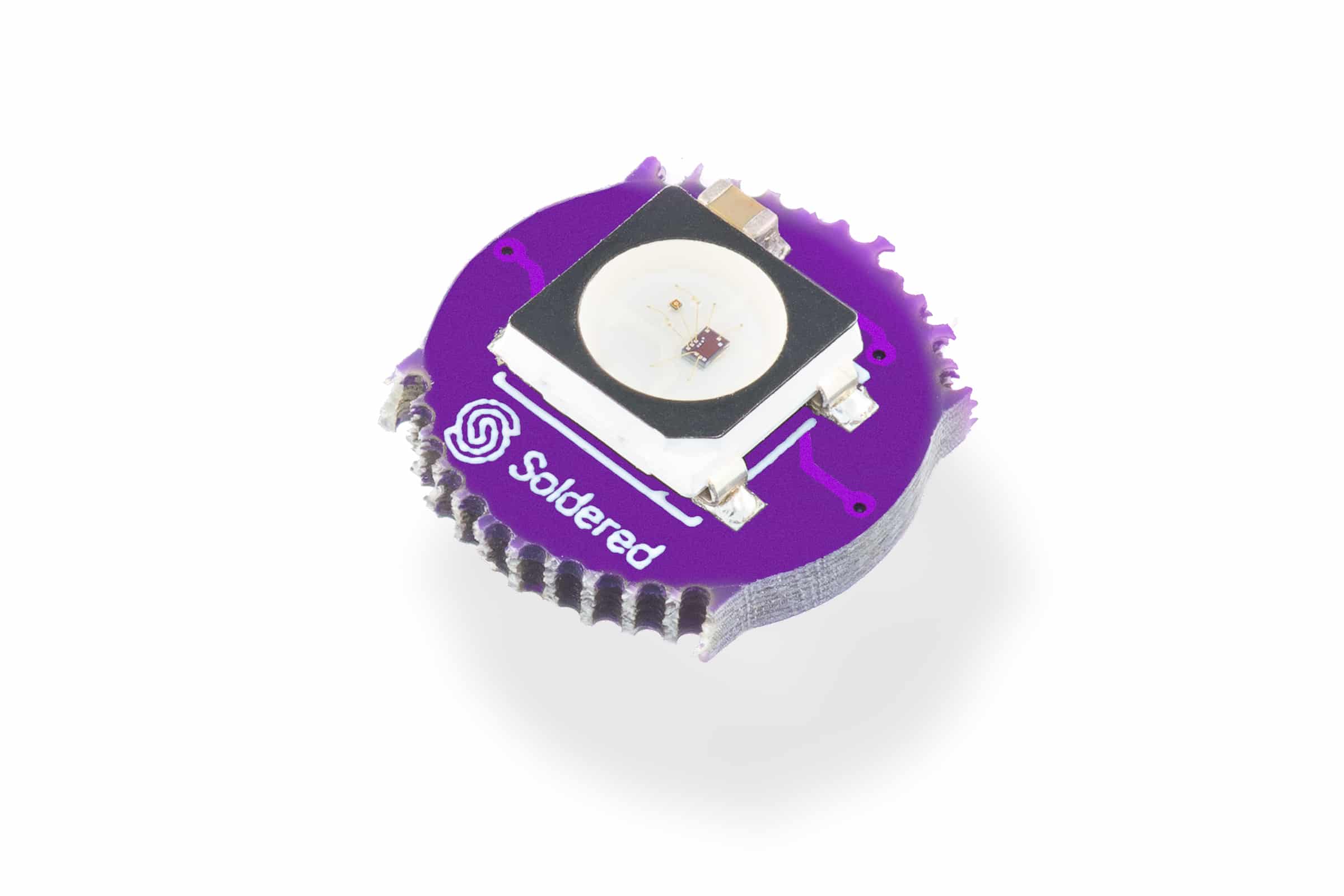

Smart LED WS2812B Pixel
Actuators & Outputs
›
LEDs & Lighting
Interface
['digital_gpio']
Qwiic
No
Transform your space with Smart LED WS2812B Pixels, featuring 16 million colors and easy control for stunning visual effects.

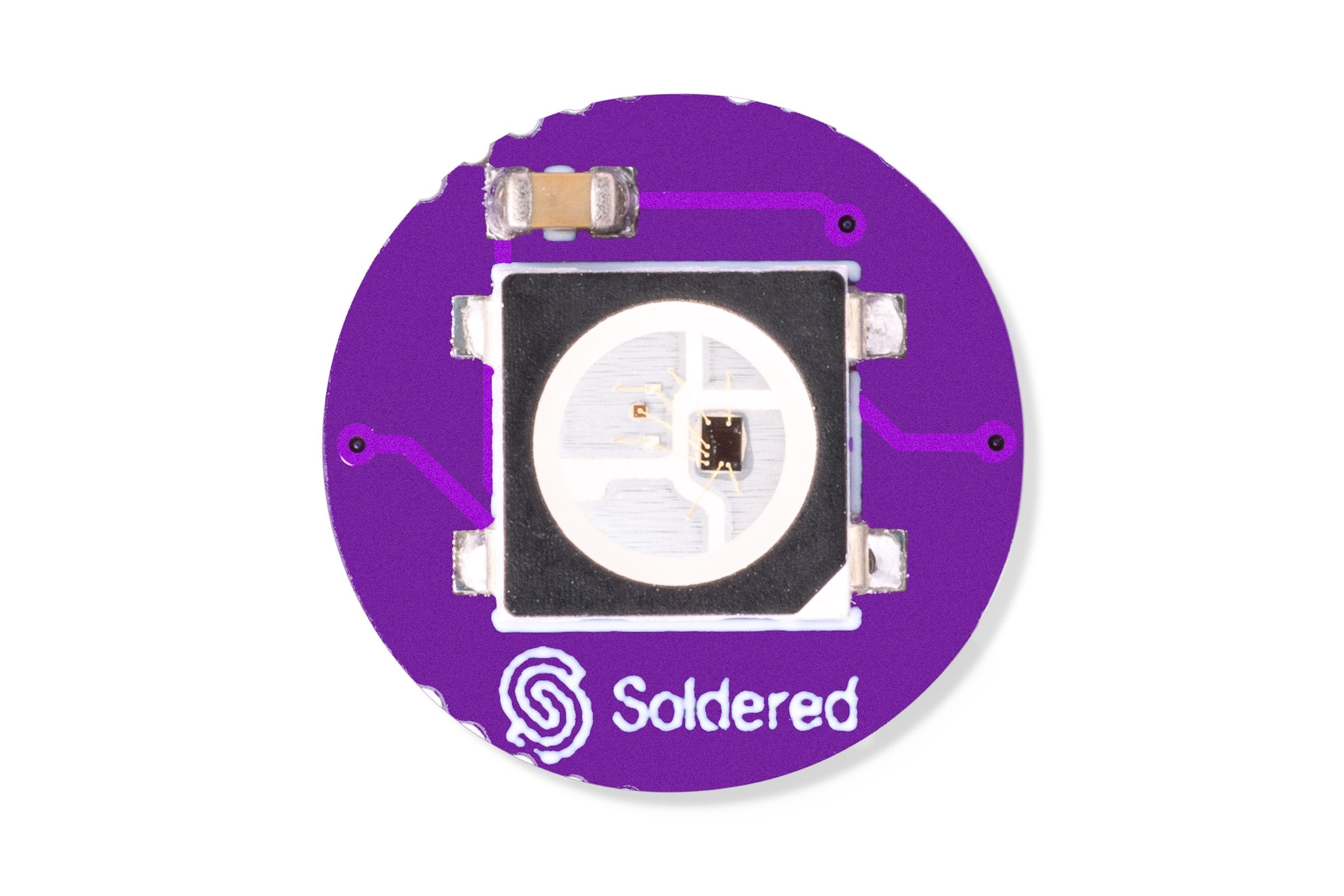

These small LEDs are not just ordinary lights - each is unique because it has a built-in small integrated circuit (IC) that is able to turn on the LED light in 16 million different colors. IC is WS2812 and it uses a single wire that can control thousands of these LEDs. With a little imagination by putting these pixels, you get superior effects with a minimum effort. These lamps are easy to control with Dasduino.
- Color: RGB (red/green/blue)
- Voltage: 5V
- Power: max. 60mA/pixel
- Diode type: WS2812 SMD LED (5050 LED diode with built IC)
- Dimensions: diameter of 10 mm / 0.4 inch
Interface
| Interface | Digital Gpio |
|---|---|
| Qwiic Compatible | No |
| Breadboard Compatible | No |
Power
| Supply Voltage Min V | 5 |
|---|---|
| Supply Voltage Max V | 5 |
| Logic Level | 5V Only |
| Operating Current (mA) | 60 |
Other
| Ic Part Number | WS2812B |
|---|
Start Here
1
Connect
Wire up to your microcontroller via ['digital_gpio'].
2
Install the library
Add the Soldered library for your language (below).
3
Run an example
Open the get-started example and read your first value.
ArduinoC++
MicroPythonPython
What's in the Box
1×
Smart LED WS2812B Pixel (main product) 333054
1×
Header pins (unsoldered)
Header pins included for all breadboard-compatible pins
