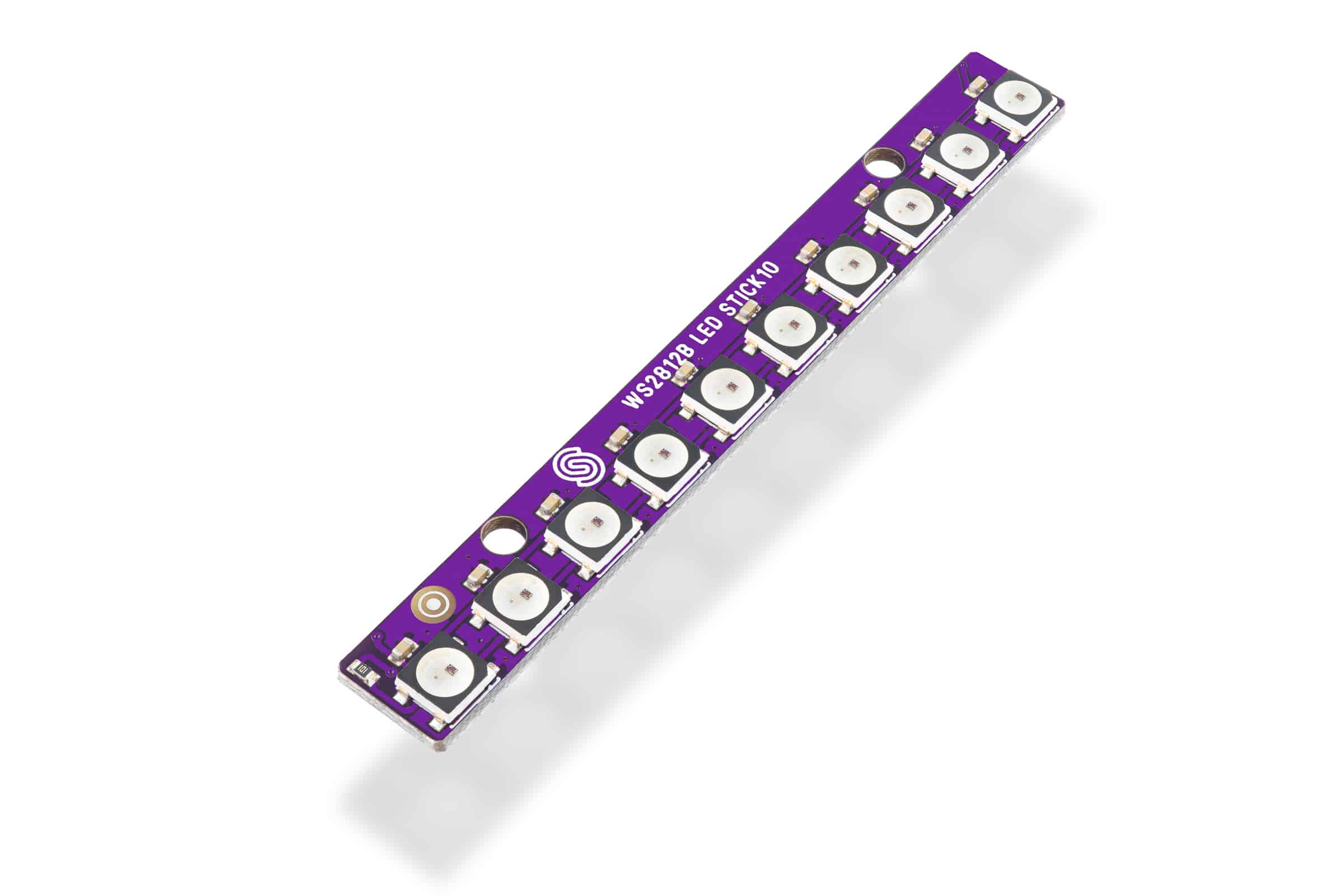

Smart LED WS2812B Stick10
Actuators & Outputs
›
LEDs & Lighting
Interface
['digital_gpio']
Qwiic
No
The Smart LED WS2812B Stick10 features 10 programmable LEDs, capable of displaying 16 million colors with simple Arduino control.

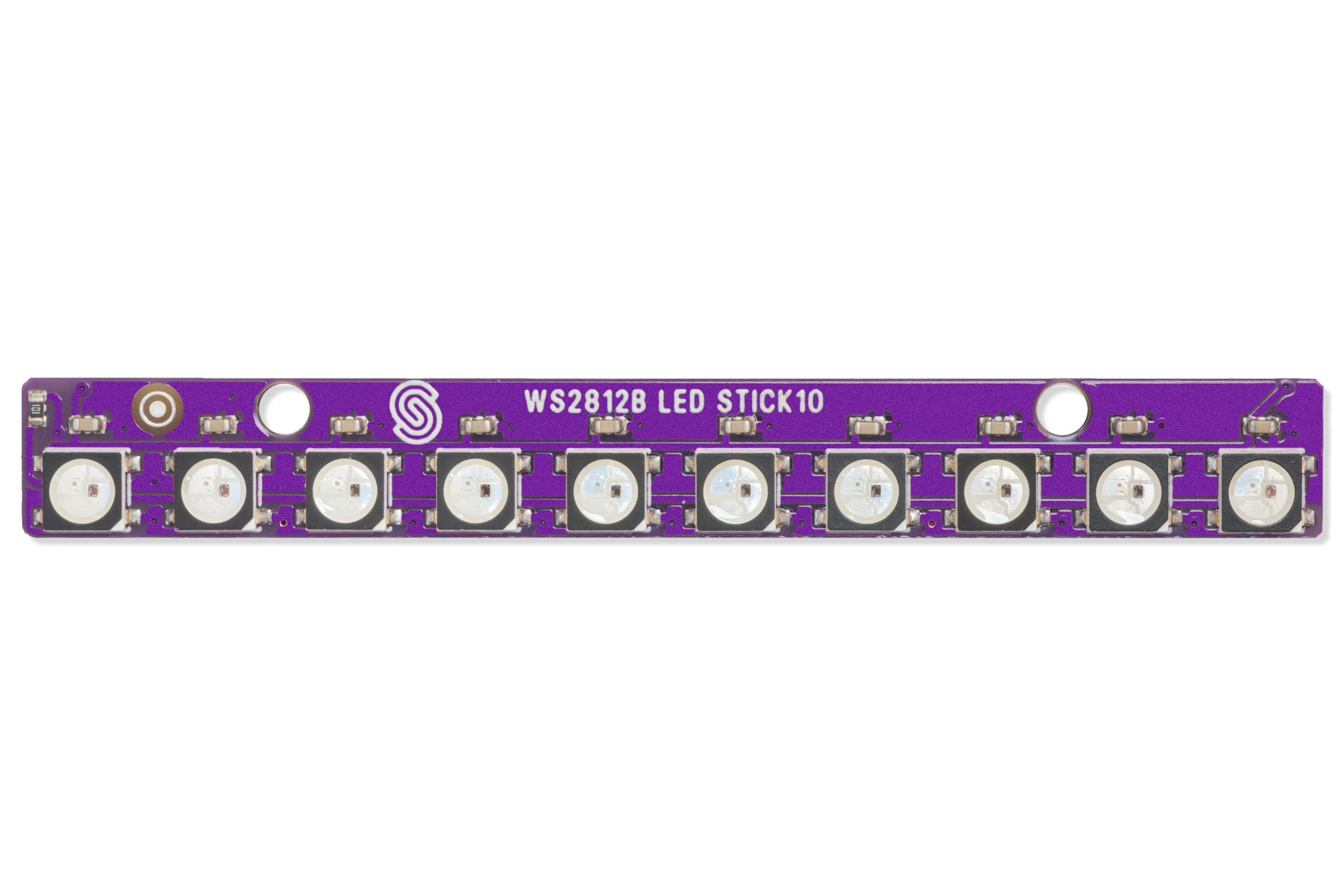

WS2812B is an extremely interesting LED that can emit light in red, green or blue - or any combination of these three colors, able to show a total of approximately 16 million different colors. On this board, diodes are arranged in a line of 10. You can even connect these sticks in a line. They are controlled by a single pin with only a few lines of code from Arduino IDE. That's possible thanks to the integrated controller inside the LED itself!
- Number of LEDs: 10
- Voltage: 5V
- LED type: WS2812B
- Current: max 60mA per LED
- Dimensions: 80 x 10 mm / 3.1 x 0.4 inch
Interface
| Interface | Digital Gpio |
|---|---|
| Qwiic Compatible | no |
| Breadboard Compatible | no |
Power
| Supply Voltage Min V | 5 |
|---|---|
| Supply Voltage Max V | 5 |
| Logic Level | 5v_only |
| Operating Current (mA) | 600 |
Other
| Ic Part Number | WS2812B |
|---|
Start Here
1
Connect
Wire up to your microcontroller via ['digital_gpio'].
2
Install the library
Add the Soldered library for your language (below).
3
Run an example
Open the get-started example and read your first value.
ArduinoC++
MicroPythonPython
What's in the Box
1×
Smart LED WS2812B Stick10 (main product) 333056
1×
Header pins (unsoldered)
Header pins included for all breadboard-compatible pins

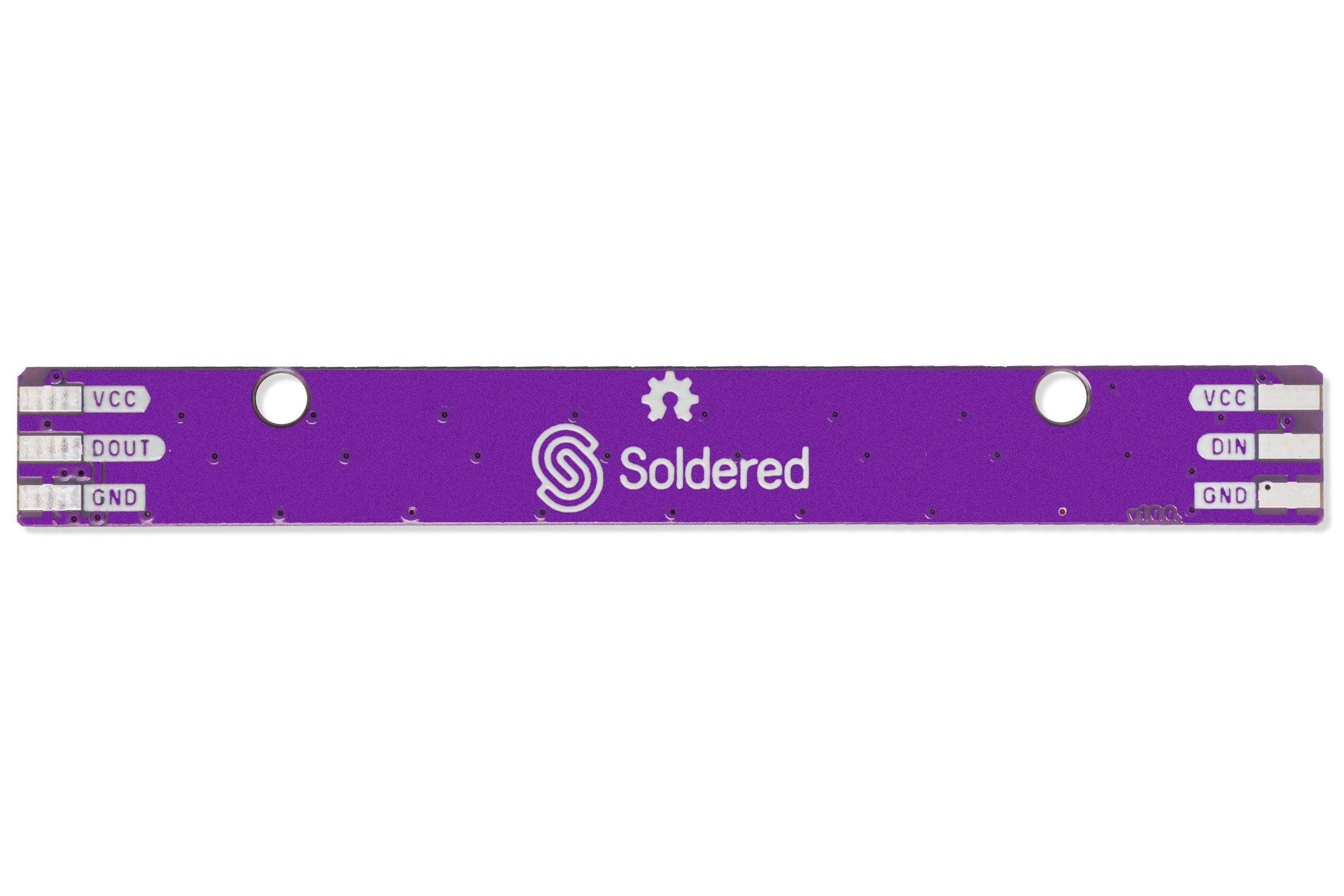

Pinout
