RS-485 Transciever Breakout
Communication & Wireless
›
Wired Communication
Interface
['uart']
Qwiic
No
Connect your microcontroller to RS-485 for long-distance, high-speed communication up to 1200m in noisy environments.
This module allows you to connect a Dasduino, or similar microcontroller, to a RS-485 communication protocol. The RS-485 is used to send data over long distances (up to 1200m) at 20Mbps and in high-noise environments, such as industrial. The module works on 5V and requires between 120μA and 500μA of current.
- Voltage: 5V
- Based on: SN65176BDR
- Dimensions: 38 x 22 mm / 1.5 x 0.9 inch
Interface
| Interface | Uart |
|---|---|
| Qwiic Compatible | no |
| Breadboard Compatible | yes |
Power
| Supply Voltage Min V | 5 |
|---|---|
| Supply Voltage Max V | 5 |
Other
| Ic Part Number | SN65176B |
|---|
Start Here
1
Connect
Wire up to your microcontroller via ['uart'].
2
Install the library
Add the Soldered library for your language (below).
3
Run an example
Open the get-started example and read your first value.
ArduinoC++
What's in the Box
1×

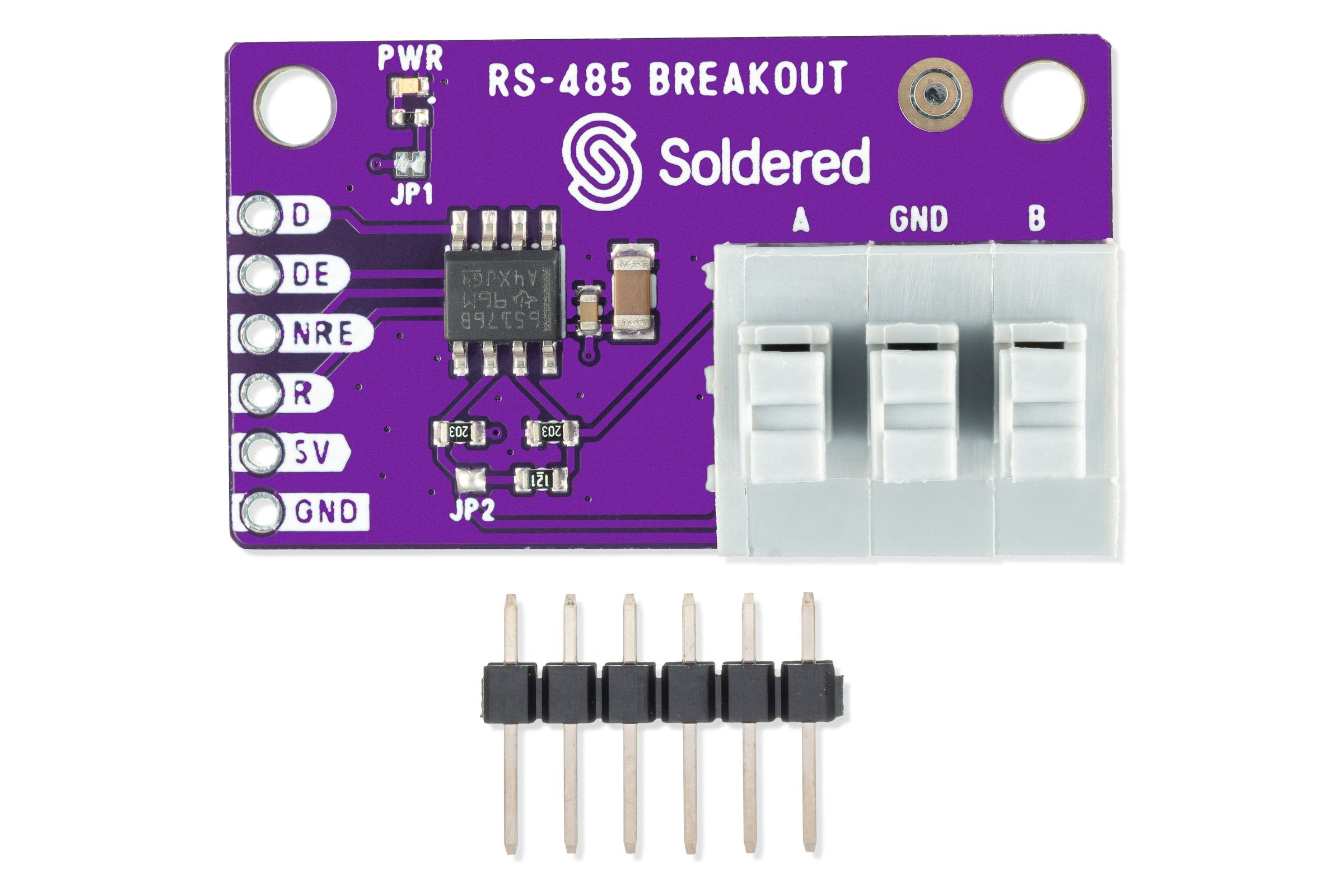

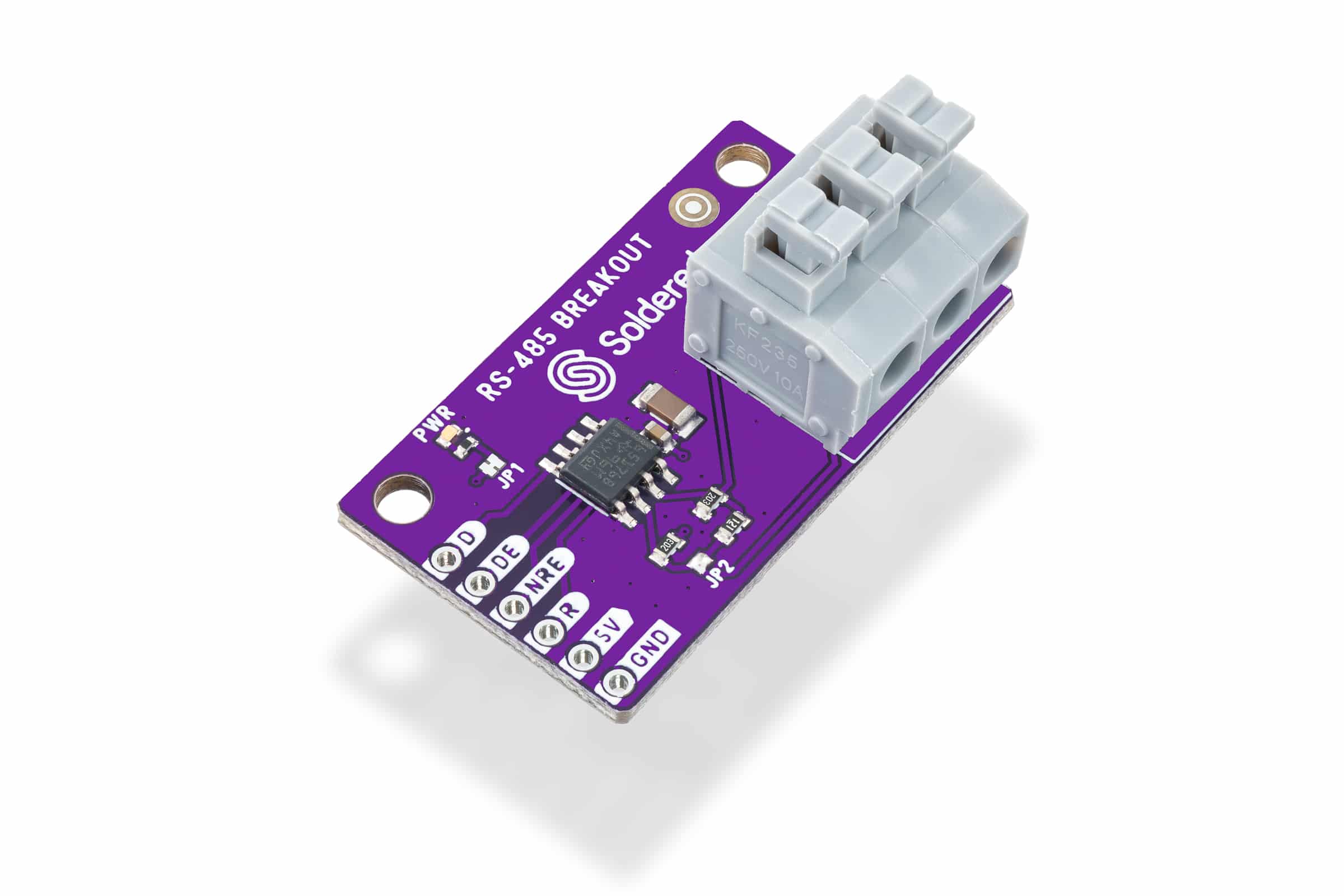

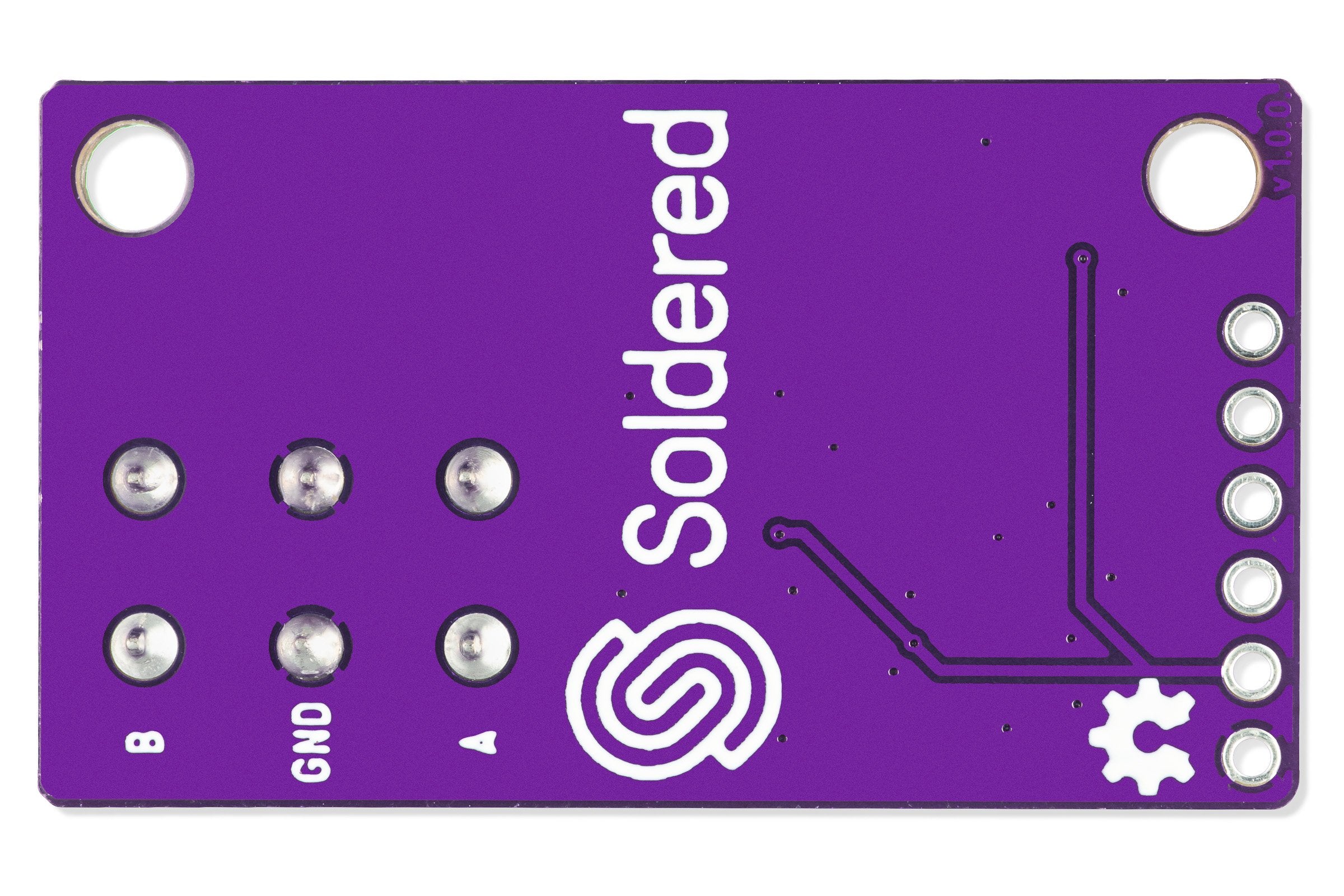

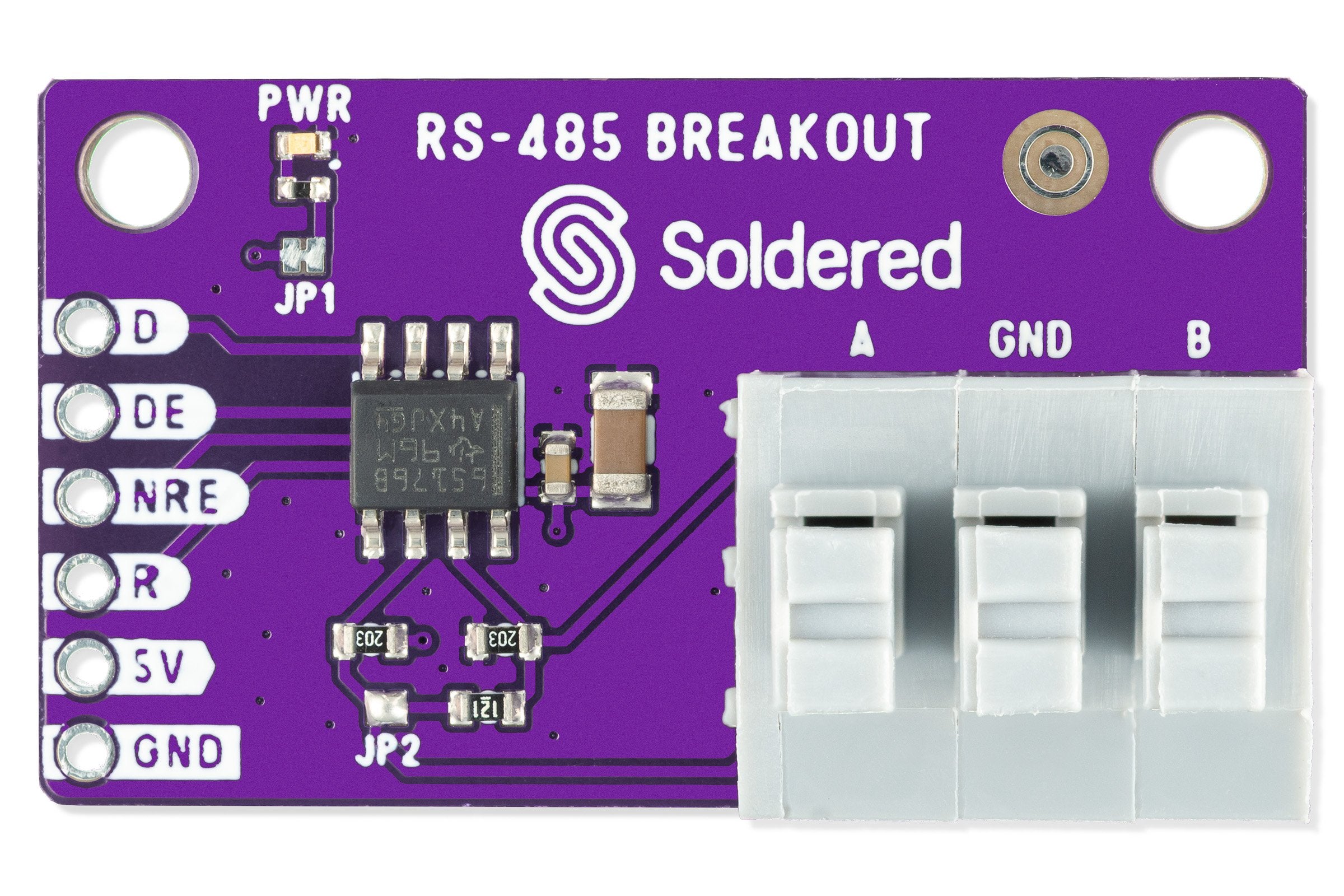

RS-485 Transciever Breakout (main product) 333068
1×
Header pins (unsoldered)
Header pins included for all breadboard-compatible pins
