Breadboard Power Supply
Power & Batteries
›
Power Supply Units
Qwiic
No
This versatile breadboard power supply provides adjustable 3.3V, 5V, and 12V outputs via USB-C or DC jack for reliable experiments.

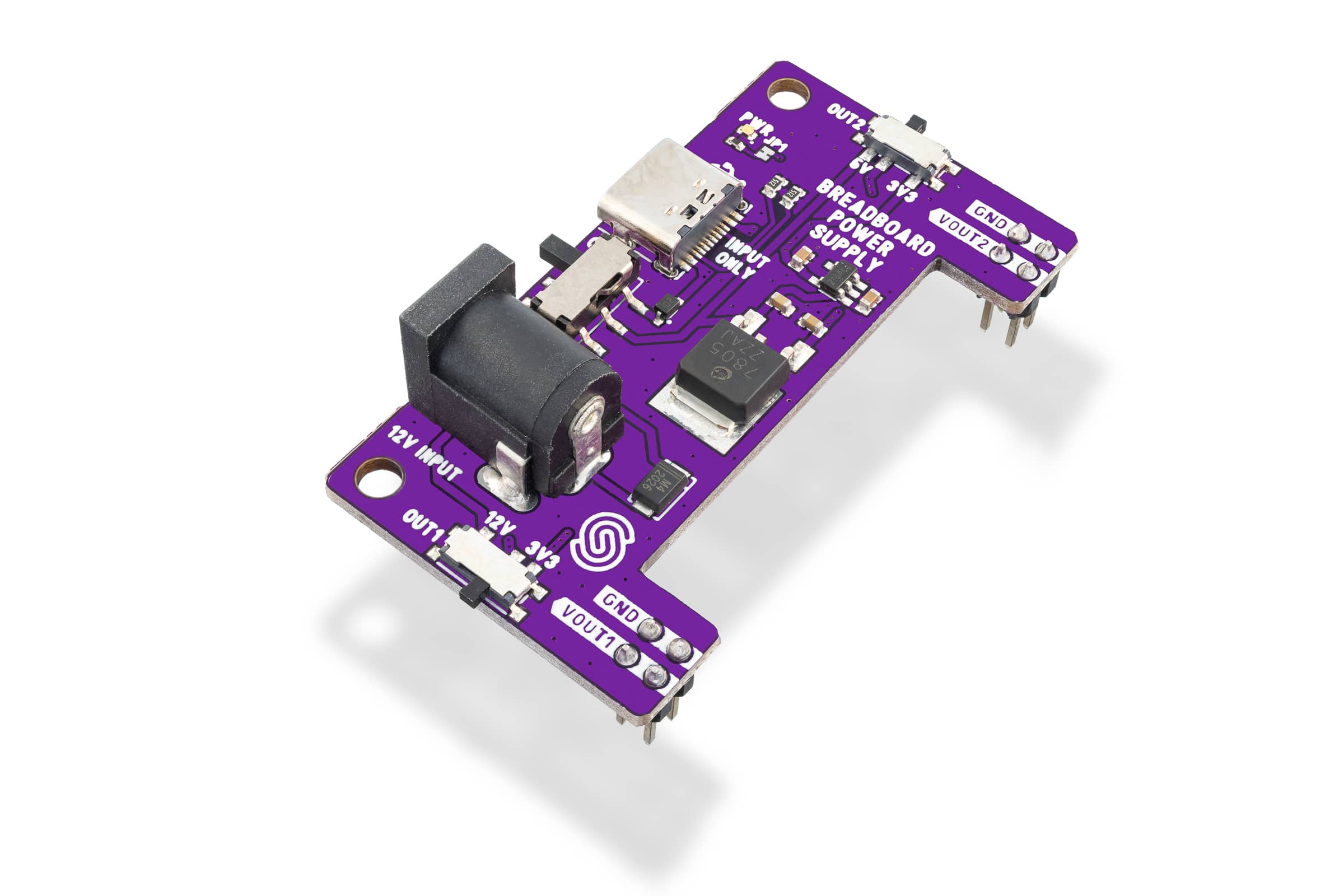

If you need a simple and stable power source on your breadboard, this board is here to help. Just give it some other power source via DC port or USB-C, and it gives you 3V3, 5V or 12V discretely to the power lines on the experimental. The output voltages are adjustable for both sides via switches. It also has a power LED, ignition switch and automatic power source selection (if both are present, it will be powered via the DC jack).
*12V is only available when used with a DC jack with 12V power supply
- Input: USB-C or DC jack
- Power supply on DC jack: 12V DC
- Output current: 3V3 @ 500mA, 5V @ 500mA
- Dimensions: 54 x 30mm
- DC jack diameter: 6.22mm
Interface
| Qwiic Compatible | No |
|---|---|
| Breadboard Compatible | Yes |
Power
| Supply Voltage Min V | 5 |
|---|---|
| Supply Voltage Max V | 12 |
Other
| Ic Part Number | 7805 |
|---|
What's in the Box
1×
Breadboard Power Supply (main product) 333084
1×
Header pins (unsoldered)
Header pins included for all breadboard-compatible pins
