3.5mm Jack Breakout
Communication & Wireless
›
Connector Breakouts
Qwiic
No
This 3.5mm Jack Breakout provides easy access to all pins of a 4-pin audio connector for versatile audio projects.
If you are working with audio and need easy access to all the pins of the 3.5mm connector, this breakout makes it possible. It accepts a male 3.5mm connector, in a 4-pin version, and allows access to all connector pins on the header.
- Board connector: 3.5mm female, accepts 3.5mm male
- Connections: ground, speaker right, speaker left, microphone
- Mounting holes: 2
- Dimensions: 22 x 22 mm / 0.9 x 0.9 inch
Interface
| Qwiic Compatible | no |
|---|---|
| Breadboard Compatible | yes |
What's in the Box
1×
3.5mm Jack Breakout (main product) 333088
1×
Header pins (unsoldered)

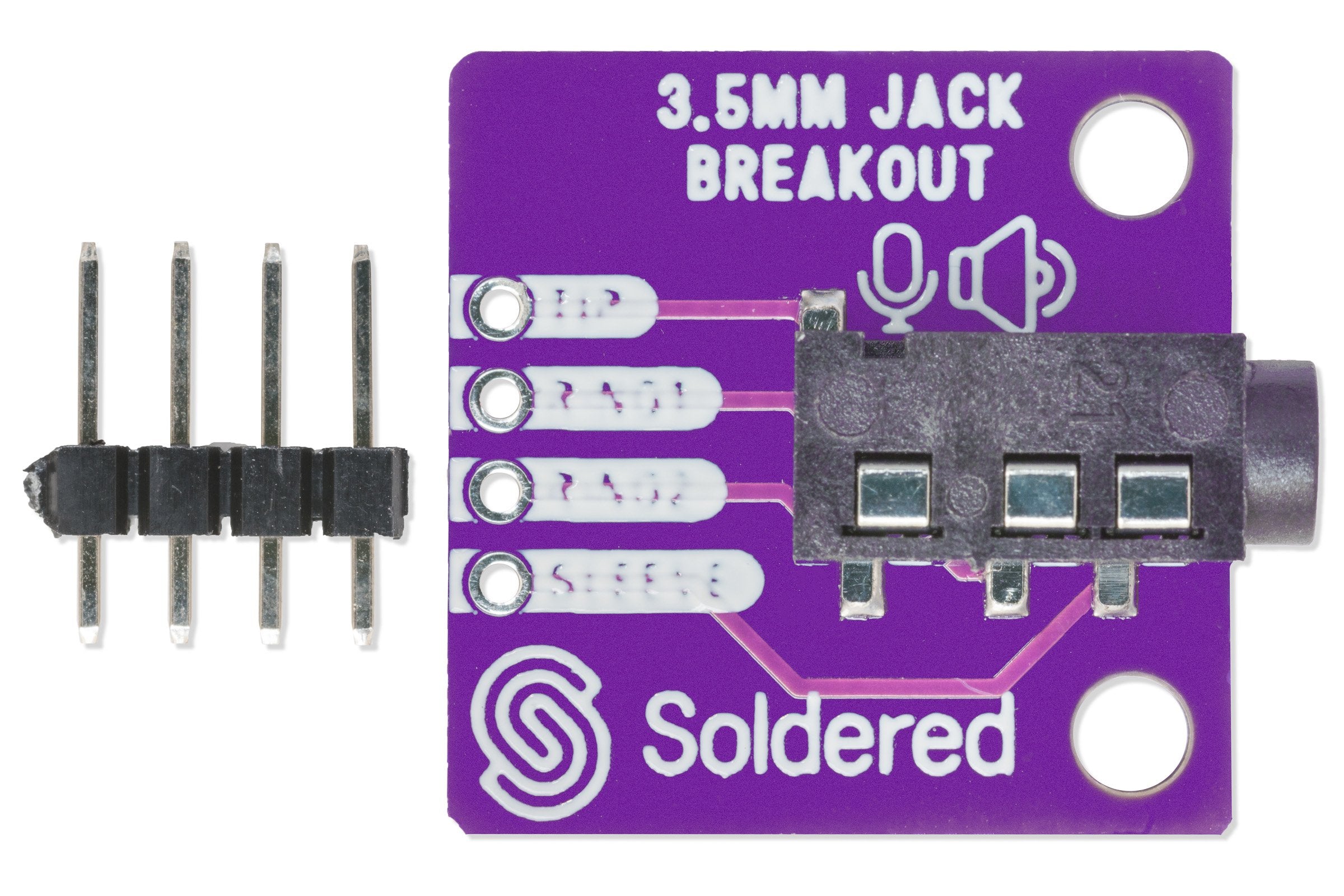

Header pins included for all breadboard-compatible pins
