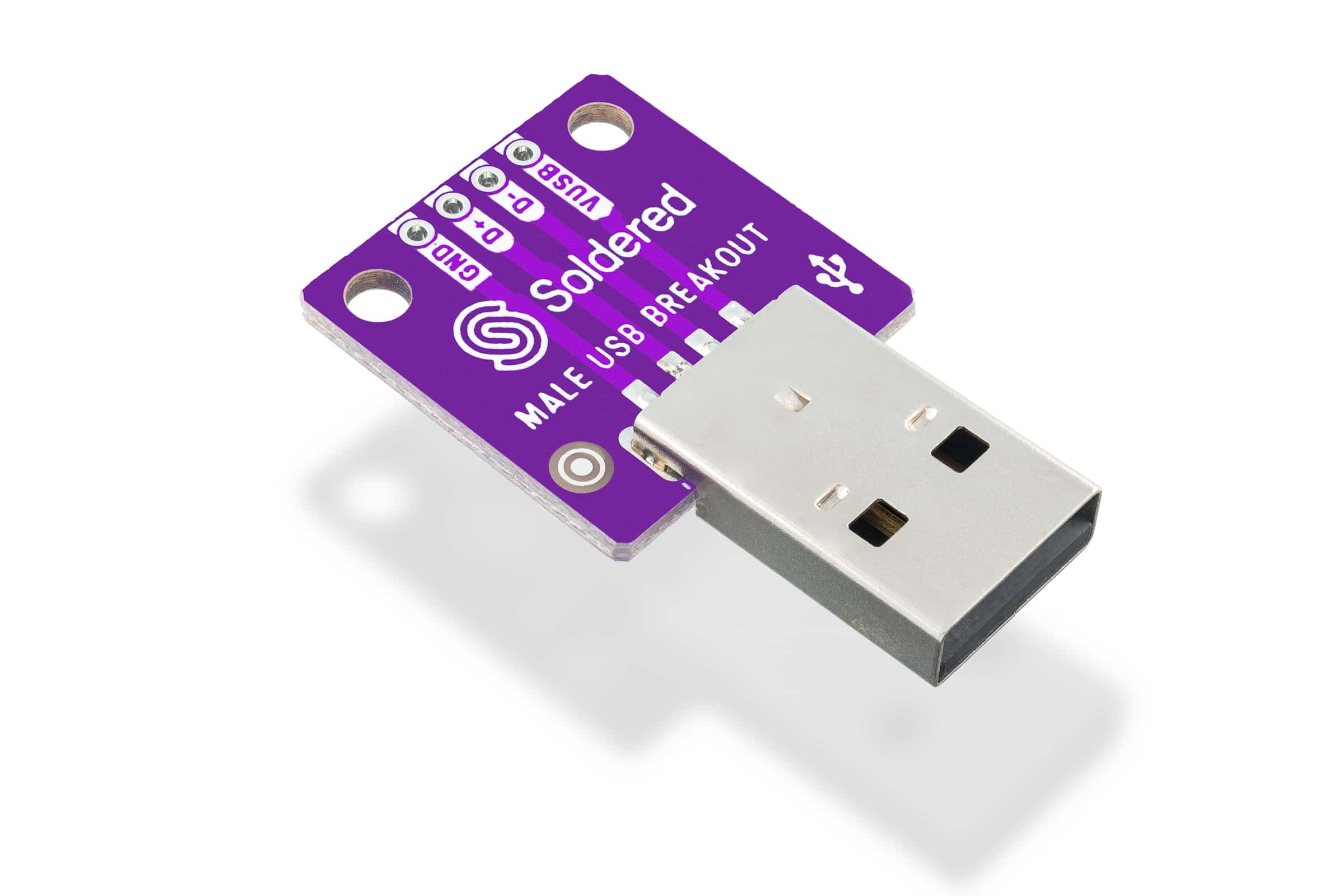

USB Type A Male Breakout
Communication & Wireless
›
Connector Breakouts
Interface
['usb']
Qwiic
No
Easily integrate USB Type-A connections into your projects with this breakout board featuring solderable male headers and mounting holes.

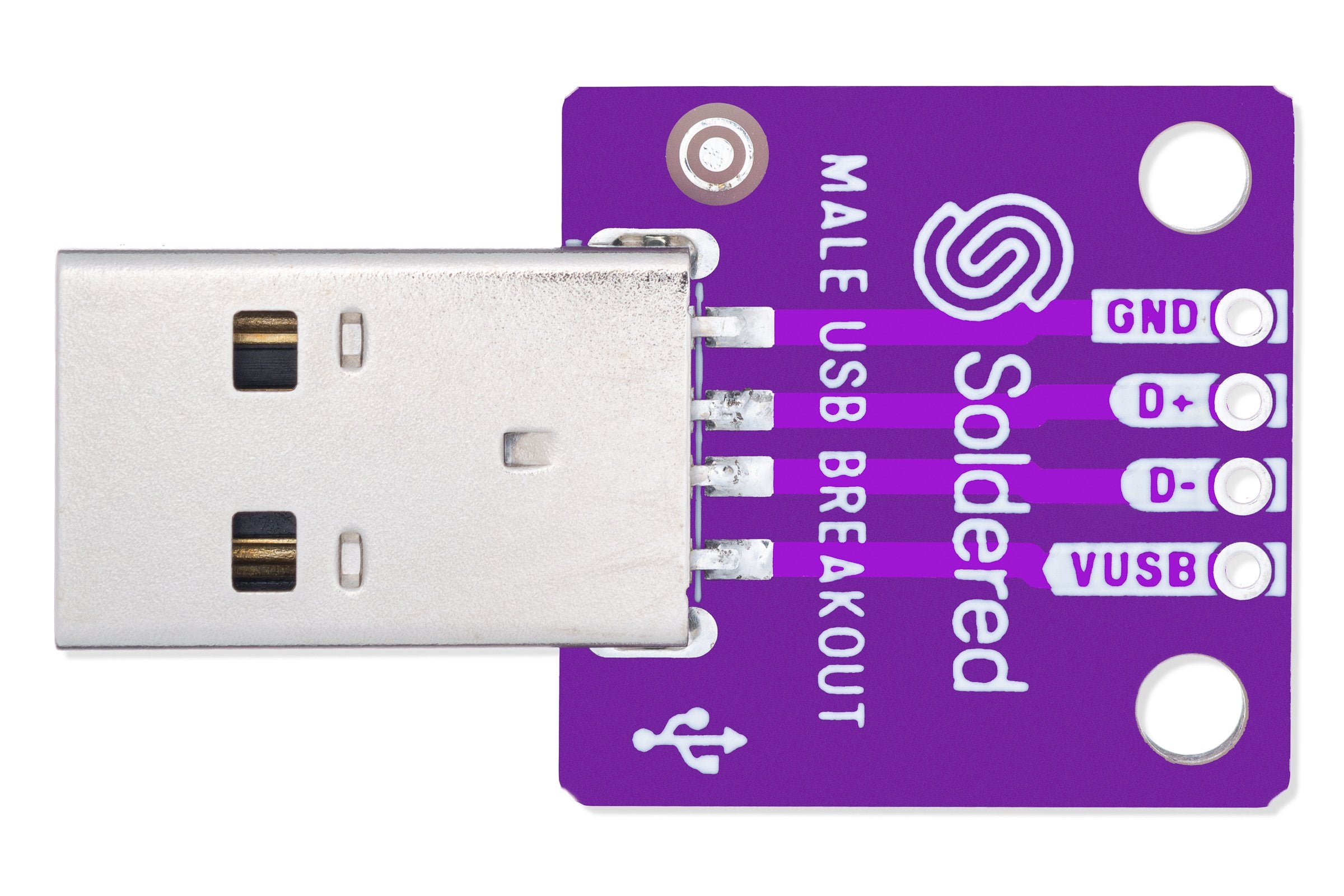

The USB Type-A connection is still prevalent. If it's in the electronic devices everywhere around us, it is only natural that we'd want it in our electronic projects. Adding a USB Type-A connection to your circuit is as easy as pie with this breakout board. The breakout board breaks the GND, D+, D-, and VUSB pins out to the plated through-holes.
Product usage tips: Male headers for the pads are added and need to be soldered. The breakout board has two mounting holes for placing it on different surfaces.
- Connectors: USB Type-A (male)
- Mounting holes: 2
- Dimensions: 22 x 22 mm / 0.9 x 0.9 inch
Interface
| Interface | Usb |
|---|---|
| Qwiic Compatible | no |
| Breadboard Compatible | yes |

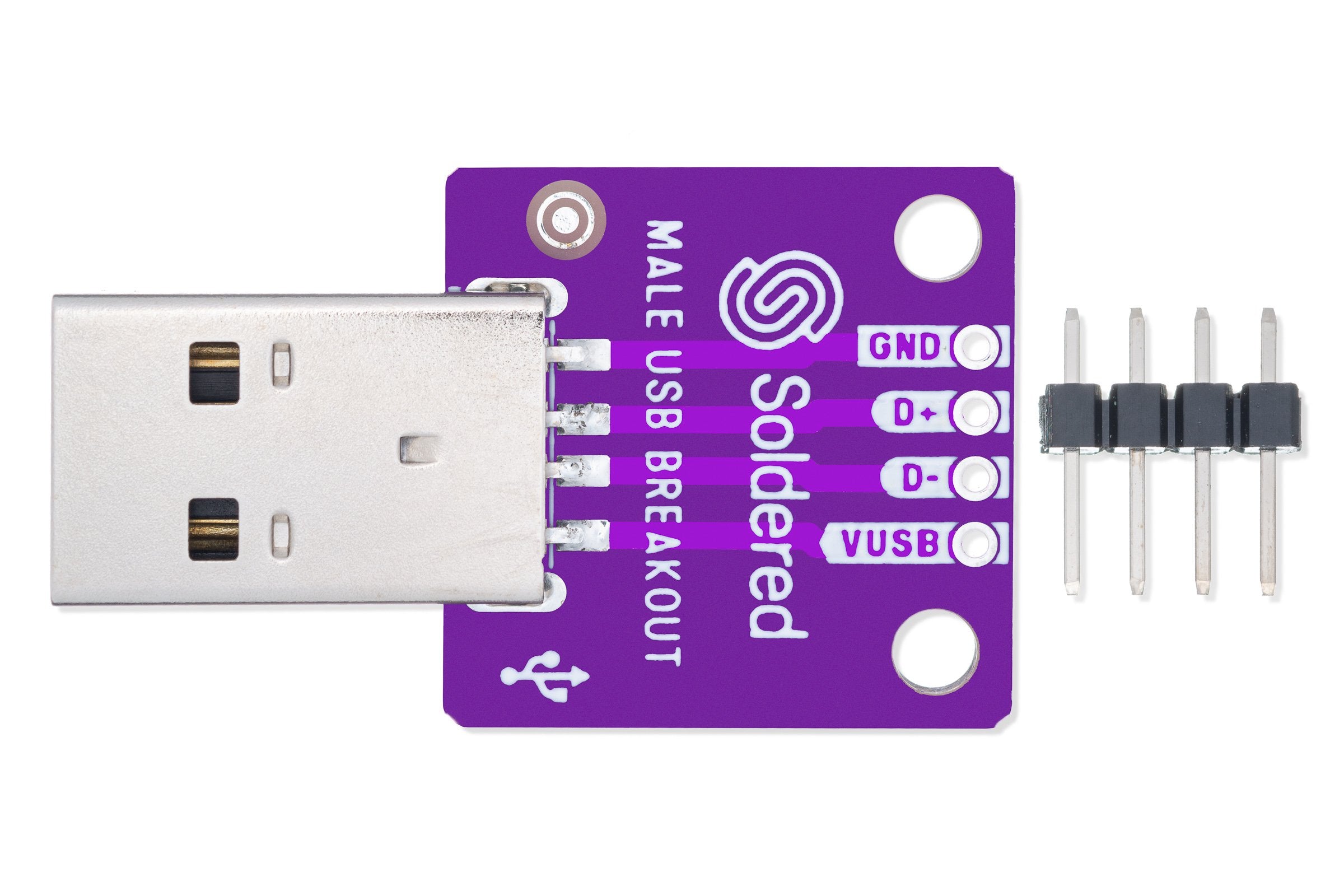

What's in the Box
1×
USB Type A Male Breakout (main product) 333133
1×
Header pins (unsoldered)
Header pins included for all breadboard-compatible pins

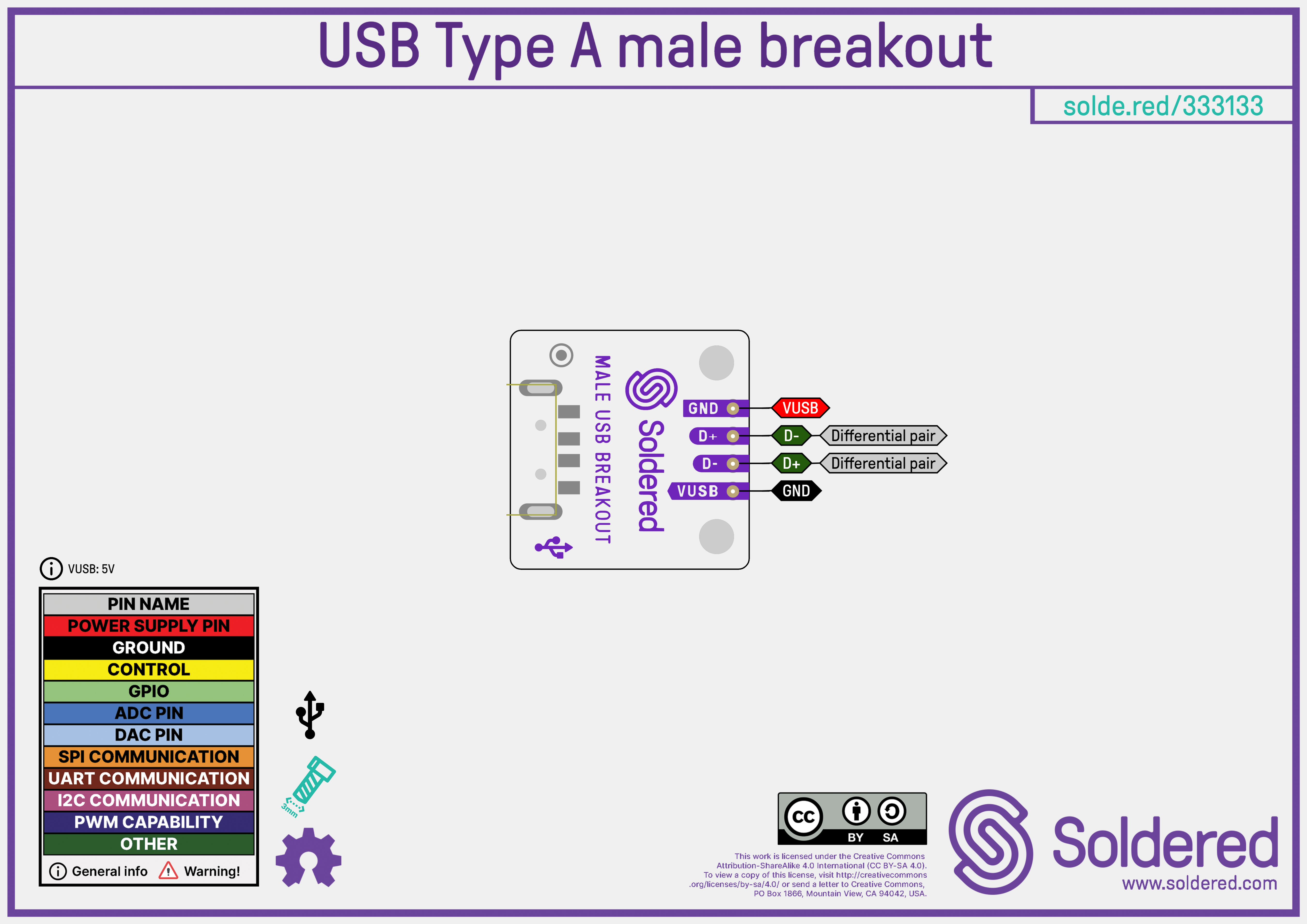

Pinout
Last updated:
Technical Resources
1 resource
